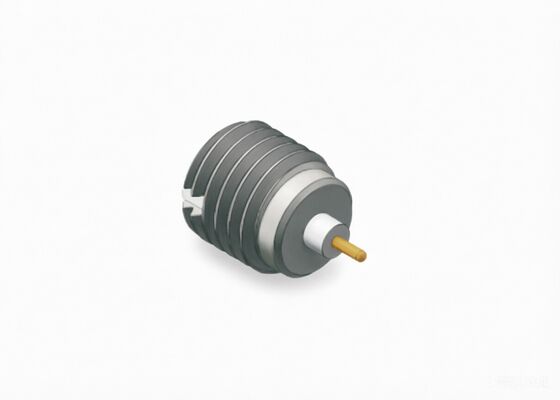

Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm
|
Produktdetails:
Zahlung und Versand AGB:
|
Ausführliche Produkt-Beschreibung
| Produktname: | SMP-HF-Anschluss | Frequenz: | Gleichstrom ~ 18 GHz |
|---|---|---|---|
| Center-Kontakt: | Kupferlegierung, vergoldet | Hülse: | Edelstahl, Passivierung |
| Isolationswiderstand: | 5000 Ohm | DWV: | 500V |
| Nennspannung: | 170V | Unabhängigkeit: | 50Ω |
| Temperaturbereich: | -55℃~+125℃ | Geschlecht: | Weiblich / Jack |
| Dielektrikum: | PTFE | Montage: | Schutzwand-Berg |
| Proben: | Verfügbar, auf Lager | Schnittstelle: | Full Detent Limited Detent Glatte Bohrung |
| Pin Od: | 0,3 mm, 0,45 mm, 0,5 mm, 0,7 mm, 0,9 mm, 1,3 mm verfügbar | ||
| Hervorheben: | Stainless Steel SMP RF Connector,SMP RF Connector 18GHz,SMP RF Connector bulkhead detent |
||
Product Description:
Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm
Engineered to thrive in the most demanding high-frequency environments, Elite Electronics' SMP RF connectors deliver exceptional signal integrity and superior low Voltage Standing Wave Ratio (VSWR) performance up to 40 GHz. Designed to accelerate your production timelines, our innovative tool-free push-on interface eliminates the need for bulky wrenches, significantly speeding up mating and demating cycles while maintaining a secure, reliable connection.
We offer maximum design flexibility with a comprehensive portfolio including straight, right-angle, and flange-mount options, suitable for both PCB and cable assemblies. Understanding that every application has unique requirements, we provide three distinct male plug configurations to optimize performance:
Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.
Outline Dimension of Stainless Steel SMP RF Connector male bulkhead connector Model : SMP-JYD2G
| Model No. | L | Interface | Note |
| SMP-JYDG | 2.5mm | Limited Detent | Engagement Depth: 2.79mm |
| SMP-JYDG-S | 2.5mm | Smooth Bore | Engagement Depth: 2.79mm |
| SMP-JYDG-F | 2.5mm | Full Detent | Engagement Depth: 2.79mm |
| SMP-JYD2G | 4.1mm | Limited Detent | Engagement Depth: 2.79mm |
| SMP-JYD2G-F | 4.1mm | Full Detent | Engagement Depth: 2.79mm |
| Model No | L | d | Interface | Engagement Depth: 2.79mm |
| SMP-JYD4G | 2mm | 0.7mm | Limited Detent | Engagement Depth: 2.79mm |
| SMP-JYD4G-S | 2mm | 0.7mm | Smoth Bore | Engagement Depth: 2.79mm |
| SMP-JYD4G-F | 2mm | 0.7mm | Full Detent | Engagement Depth: 2.79mm |
| SMP-JYD89G-F | 3mm | 0.7mm | Full Detent | Engagement Depth: 2.79mm |
Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.
Applications:
Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
Packing & Shipping:
Packaging:
Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm
Shipping:
Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.
