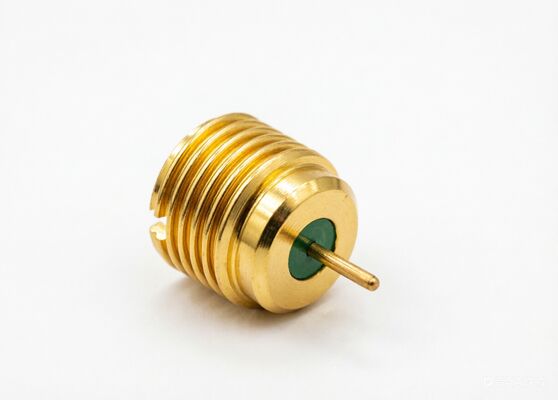

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm
|
Produktdetails:
Zahlung und Versand AGB:
|
Ausführliche Produkt-Beschreibung
| Produktname: | SMP-HF-Anschluss | Frequenz: | Gleichstrom ~ 18 GHz |
|---|---|---|---|
| Center-Kontakt: | Kupferlegierung, vergoldet | Hülse: | Kupferlegierung, vergoldet |
| Isolationswiderstand: | 5000 Ohm | DWV: | 500V |
| Nennspannung: | 170V | Unabhängigkeit: | 50Ω |
| Temperaturbereich: | -55℃~+125℃ | Geschlecht: | Stempel |
| Dielektrikum: | PTFE | Montage: | Schutzwand-Berg |
| Proben: | Verfügbar, auf Lager | Schnittstelle: | Full Detent Limited Detent Glatte Bohrung |
| Pin Od: | 0,3 mm, 0,45 mm, 0,5 mm, 0,7 mm, 0,9 mm, 1,3 mm verfügbar | ||
| Hervorheben: | Gold plating SMP RF connector,Hermetic SMP connector with glass sealing,Bulkhead SMP connector 18GHz 50 Ohm |
||
Product Description:
Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm
Elite Electronics' SMP RF connectors ensure superior signal integrity up to 40 GHz. Their innovative, tool-free push-on interface accelerates production by eliminating bulky wrenches.
Choose from straight, right-angle, or flange-mount options with three male plug configurations—Full Detent, Limited Detent, and Smooth Bore—to optimize retention force and density
for your specific application.
Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.
Outline Dimension of Stainless Steel SMP RF Connector male bulkhead connector Model : SMP(M)-JYD43
| Model No. | L | d | Interface | Note |
| SMP(M)-JYD43 | 2.7mm | 0.39 | Limited Detent | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD43-S | 2.7mm | 0.39 | Smooth Bore | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD65 | 1.5mm | 0.3 | Limited Detent | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD82 | 2.1mm | 0.39 | Limited Detent | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD82-S | 2.1mm | 0.39 | Smooth Bore | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD92-F | 2.9mm | 0.6 | Full Detent | Hermetic,Engagement Depth: 2.79mm |
| Model No | Interface | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD10 | Limited Detent | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD10-S | Smoth Bore | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD10-F | Full Detent | Hermetic,Engagement Depth: 2.79mm |
| SMP(M)-JYD10G | Limited Detent | Hermetic,Engagement Depth: 2.79mm |
Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.
Applications:
Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
Packing & Shipping:
Packaging:
Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm
Shipping:
Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.
