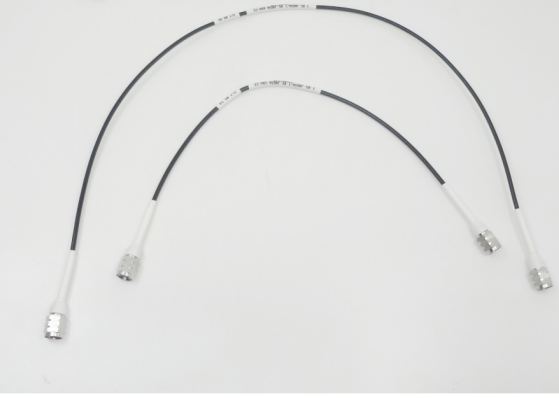

SMA Male to SMA Female Connector RF Cable Assembly for RF Testing and Communication Devices

Product Description:

The RF Cable Assembly is a high-quality solution designed to meet the demanding requirements of modern communication systems. Engineered with precision and reliability in mind, this product is an essential component for anyone needing robust and efficient RF connectivity. Featuring a characteristic impedance of 50Ω, this assembly ensures optimal signal integrity and minimal loss, making it ideal for a wide range of RF applications.

The gold plating enhances conductivity and provides excellent resistance to corrosion, ensuring long-term durability and consistent performance even in harsh environments. This plating also contributes to reduced signal degradation, which is critical for maintaining high-frequency signal quality in sensitive RF systems.

The cable used in this assembly is the CXN3506 type, known for its exceptional electrical and mechanical properties. With a cable diameter of 2.3 mm, it strikes a perfect balance between flexibility and durability, allowing for easy installation in tight spaces without compromising on performance. The CXN3506 cable type is specifically chosen to support high-frequency transmission with minimal attenuation, making it suitable for applications ranging from telecommunications, aerospace, satcom.Whether deployed in professional communication networks, industrial systems, or specialized RF environments, this product consistently meets and exceeds expectations.

As an RF Coax Cable Assembly, this product is engineered to handle a wide spectrum of frequencies with exceptional performance. Whether used in wireless communication systems, test and measurement setups, or other RF applications, this assembly delivers consistent and reliable connectivity. The combination of the CXN3506 cable type, gold-plated connectors, and superior insulation resistance makes this RF coax cable assembly a preferred choice among engineers and technicians alike.

In summary, the RF Cable Assembly offers a comprehensive package of features tailored for high-performance RF applications. Its 50Ω impedance guarantees compatibility with most RF systems, while the gold-plated connectors ensure long-lasting, corrosion-resistant connections. The CXN3506 cable type with a 2.3 mm diameter provides both flexibility and durability, facilitating easy installation and reliable operation. Furthermore, the outstanding insulation resistance of ≥5000MΩ safeguards signal integrity and electrical safety.

Technical Parameters:

Applications:

The ELT RF Cable Assembly, featuring the CXN3506 cable type, is an ideal solution for a wide range of application occasions and scenarios that demand high-performance connectivity and reliable signal transmission. Designed with precision and manufactured in China, this cable assembly is certified under ISO9001 and ISO14001, ensuring superior quality and environmental standards supporting frequencies from DC up to 18GHz, making it suitable for advanced communication systems and high-frequency applications.

One of the primary application occasions for the ELT CXN3506 Cable Assembly is in telecommunications infrastructure, where stable and high-frequency signal transmission is critical. The cable’s 2.3 mm diameter and grey color provide durability and ease of identification in complex installations. Whether used in base stations, signal repeaters, or wireless communication equipment, the ELT SMA cable assemblies ensure minimal signal loss and robust connectivity. Additionally, the SMA Cable Assemblies allows for flexible integration into existing systems, accommodating various connector sizes without compromising performance.

In laboratory and testing environments, the ELT RF Cable Assembly excels as a dependable tool for connecting test instruments and measurement devices operating at high frequencies. Its DC~18GHz frequency range supports a broad spectrum of tests including RF testing, signal analysis, and network diagnostics.

Beyond telecommunications and testing, the ELT CXN3506/MF108A Cable Assembly is also widely used in aerospace, and medical equipment applications where signal integrity and reliability are paramount. The rugged construction and precise engineering make it ideal for harsh environments and mission-critical scenarios. Overall, the ELT RF Cable Assembly line, provides a comprehensive solution for professionals seeking high-quality, high-frequency RF cable connections.

Customization:

ELT offers customized RF Coaxial Cable Assembly solutions designed to meet your specific requirements. The assemblies come with SMA Male connectors (Connector B) and provide excellent insulation resistance of ≥5000MΩ, guaranteeing reliable performance in various applications.

Our SMA Cable Assemblies are available with a minimum order quantity of 30 pieces. Delivery time ranges from 8 to 10 weeks, and we accept payment terms including T/T and L/C for your convenience. Trust ELT for your RF Coaxial Cable Assembly needs, where quality, customization, and timely delivery come together to support your projects.
